30'' Chrome Tilt Steering Column Floor Shift Replacement for Chevy GM WithAdapter

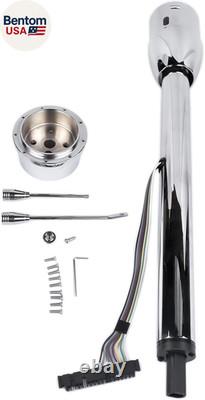

30 Chrome Tilt Steering Column, Manual Style, Floor Shift, Hot Rod, No Key, w/ 9-Bolt Steering Wheel Adapter R91001C-30. Features: 30" Steering Column / 2" Column Diameter / 3/4" DD-36 Spline / 1" DD Output Shaft / Replacement for GM Wire Harness with 4&1/4 Male Connector. Products include: Complete Tilt Column, Shift Lever, Tilt Lever, Turn Signal Lever, And Flasher Button. It Also Includes A Wiring Diagram, A 9 Bolt Style Steering Wheel Adapter.

30'' Steering Column (measured from bottom of shaft to top of shroud). 1" DD Output Shaft (This column will take either a 1" DD around the outside of the shaft or a 3/4''DD will slide inside the shaft).

4&1/4'' Male GM wire connector. With a 9-Bolt Style Steering Wheel Adapter. Tilt Lever, Turn Signal Lever, Flasher Button Included. Made of Stainless Steel (except the bell housing is cast aluminum). Professional installation is highly recommended. Black--ground for horn Blue--right front turn Brown--hazard flasher power feed Purple--ture flasher power feed Yellow--left rear turn Green--right rear turn Gray--left for horn.
